Cloud-Native Microservices With Kubernetes - 2nd Edition

An overview of the architecture and the flow of information

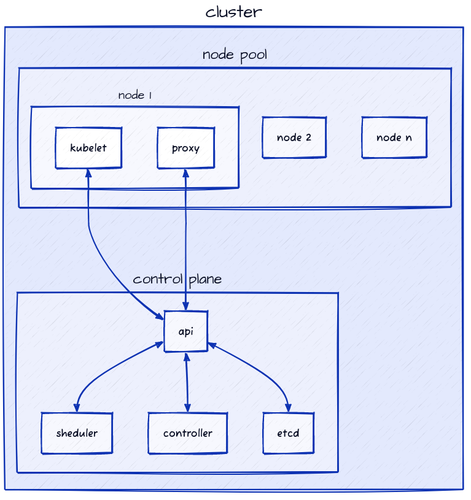

The following diagram illustrates the various components of a Kubernetes cluster.

To better understand how the components interact with each other, let's consider a simple scenario where a user wants to deploy a containerized application on a Kubernetes cluster. The user starts by using the kubectl command-line tool to create the resources needed. Here is what happens behind the scenes:

• kubectl sends a request to the API Server to create a new deployment.
• The API Server validates the request and stores information about the deployment in etcd.
